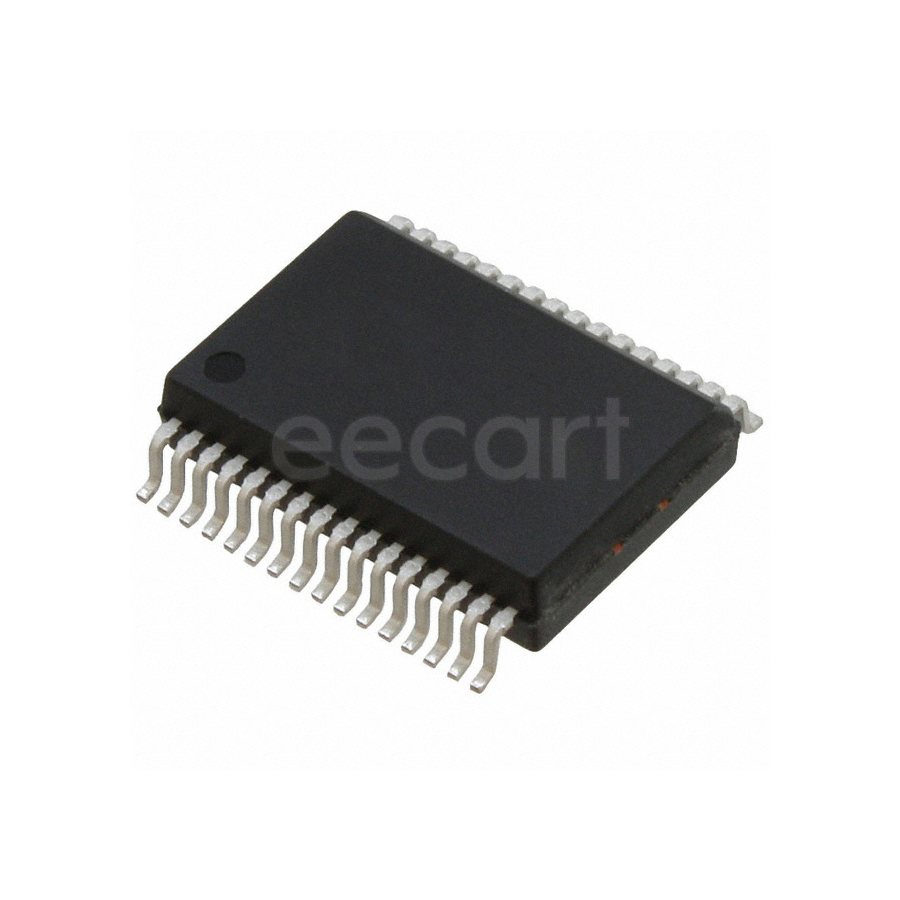

MCZ33996EK
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
MCZ33996EK
Datasheet:
Description:
Hot Swap Controllers SSOP-32 SMD/SMT number of channels:16 Low Side
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Resistance | 550 mΩ |
| Height | 2.45 mm |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.501 g |
| Current Rating | 2.5 A |
| Interface | SPI, Serial |
| Output Current | 350 mA |
| Max Power Dissipation | 1.7 W |
| Max Supply Voltage | 27 V |
| Min Supply Voltage | 5 V |
| Power Dissipation | 1.7 W |
| Max Output Current | 900 mA |
| Ambient Temperature Range High | 125 °C |
| Number of Channels | 16 |
| Turn-On Delay Time | 2 µs |
| Turn-Off Delay Time | 4 µs |
| Max Supply Current | 4 mA |
| Output Configuration | Low Side |
| Number of Outputs | 16 |
| Nominal Supply Current | 4 mA |
| Nominal Input Voltage | 27 V |
| Max Junction Temperature (Tj) | 150 °C |
| Fault Protection | Over Temperature, Over Voltage |
| On-State Resistance | 550 mΩ |
| Schedule B | 8542390000 |
| Packaging | Tube |
| Type | Low Side |
Stock: 1
Distributors
pcbx
pcbxUnit Price$7.59198
Ext.Price$7.59198
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.59198 | $7.59198 |
| 10 | $7.33547 | $73.35470 |
